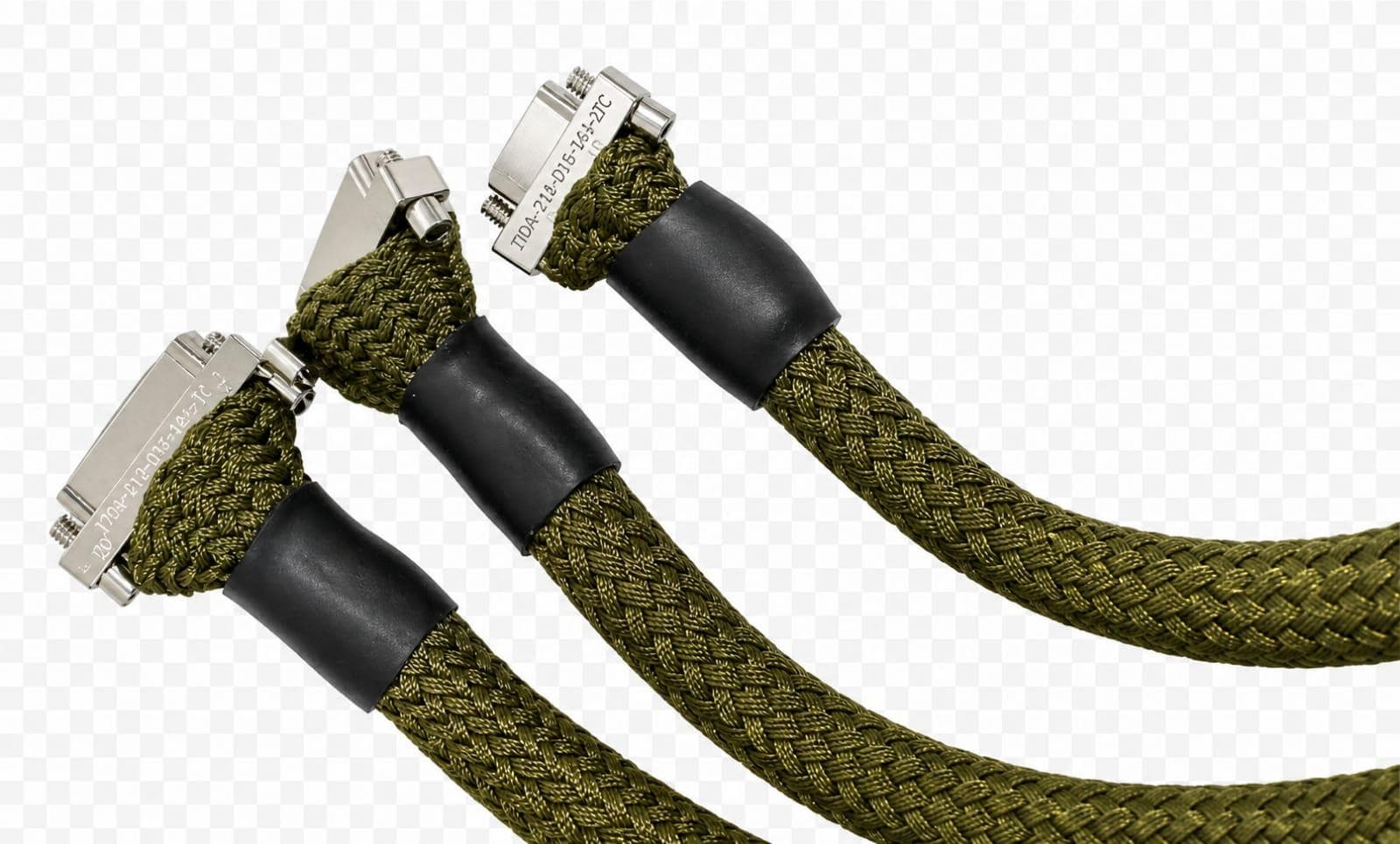

Custom Braided Loom — Nano-D Aerospace Assembly
Part No: AT-YL350-ND
High-density interconnect assembly featuring Nano-D technology. Y-split configuration — 51-pin Nano-D on Side A splitting into 37-pin and 15-pin Nano-D on Side B. Compliant with MIL-DTL-32139, IPC/WHMA-A-620, and AS9100D.
Key Features
- Operating range: -40°C to +155°C
- Total assembly length: 350mm ± 2mm
- 28 AWG stranded silver-plated copper conductors
- PTFE wire insulation
- High-density polyamide outer braiding — military green
- Side A: 51-pin Nano-D sealed connector
- Side B: 37-pin & 15-pin Nano-D (Y-split)
- 600V RMS voltage rating
- 100% continuity tested (0.0Ω point-to-point)
- MIL-DTL-32139 / IPC-WHMA-A-620 / AS9100D compliant
Applications
→Aerospace avionics
→Military communication hardware
→UAV and drone systems
→Defense electronics
